2022-02-07

Changes to DataGraph and ClockGen2 modules


Published as pre-release. 2022.2.6.0]

A couple more changes on the DataGraph and ClockGen2 module, such that they work better for me.

I’ve relabeld a couple of signals; sync is now quantise as that is what it actually does; the rate is now labeled as bars / m (bars per minute) and the div rate is now accents.

here is a new bars control added for the ClockGen2 module - this is the number of divisions to be used in the DataGraph and this can be automated by pulling a wire from ClockGen2’s new bars out to the new horizontal divisions input of the DataGraph (left of the 16 in the image).

For the DataGraph moduele the way divisons work changed a bit - it is now possible to have uneven divisions (existing patches may want to double their division settings, this also applies to the AudoGraph module). No middle indication will be drawn whe nthe number of divisions is odd.

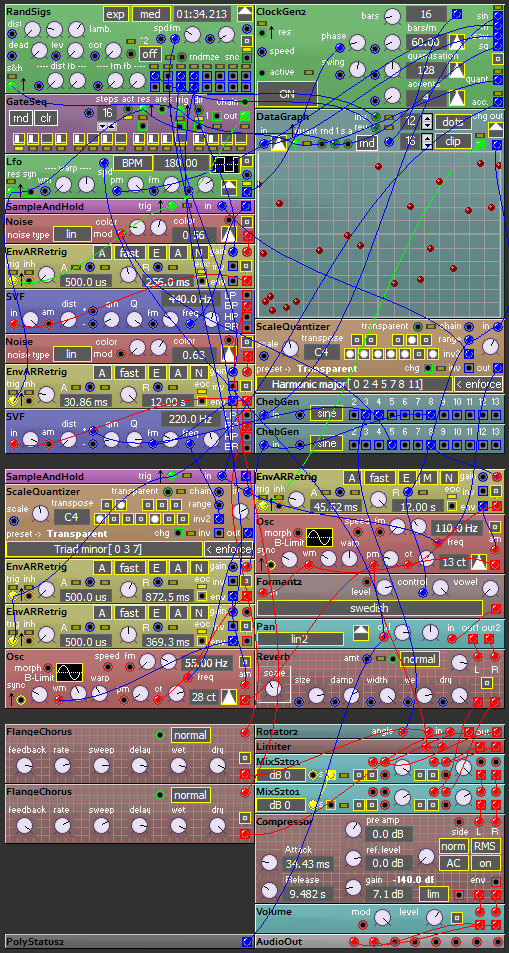

The image shows how to work with this, both time and pitch are quantised this way without the need for precicise dot placement in the DataGraph.

Made an example patch for this, it is to be seen seen, heard and downloaded from below (possibly after clicking ‘Read more…’).

The patch can be downloaded and made a recording of it where you can hear it. The voice count was set to two for the recording.

For more info about the module see the module help for the DataGraph and ClockGen2 modules.
