Rules

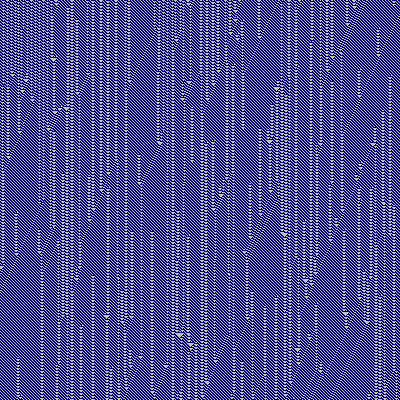

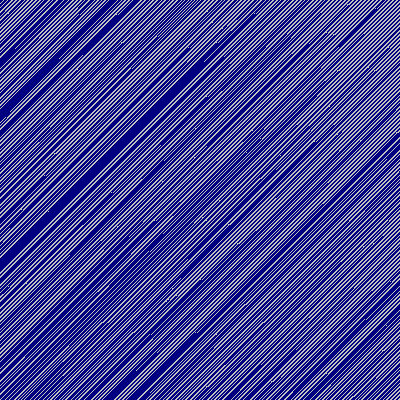

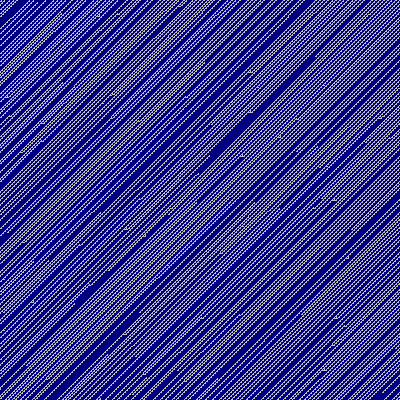

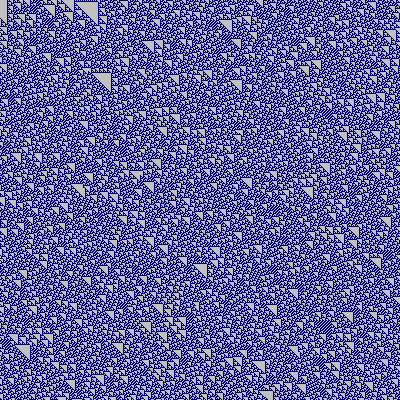

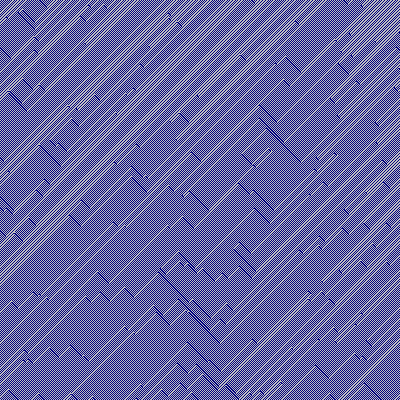

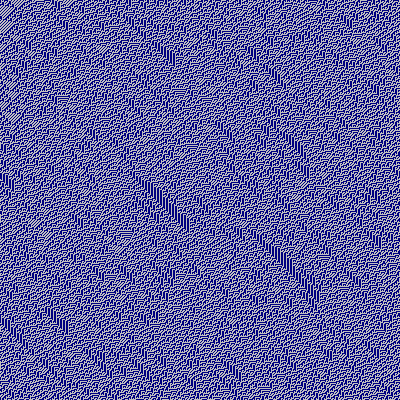

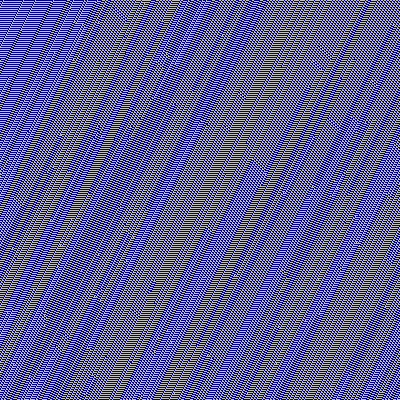

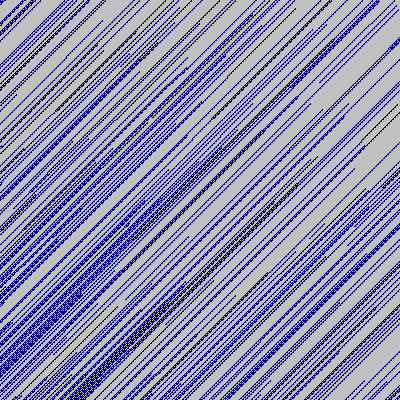

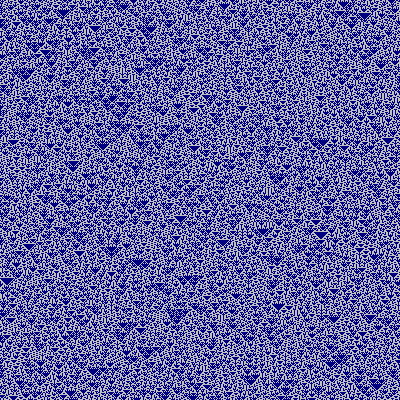

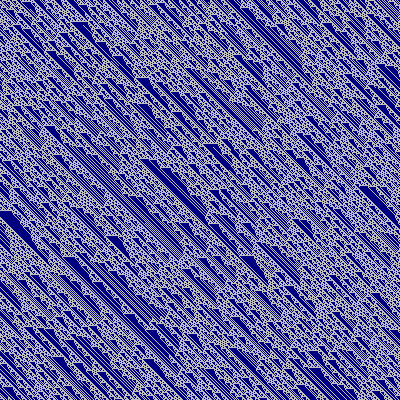

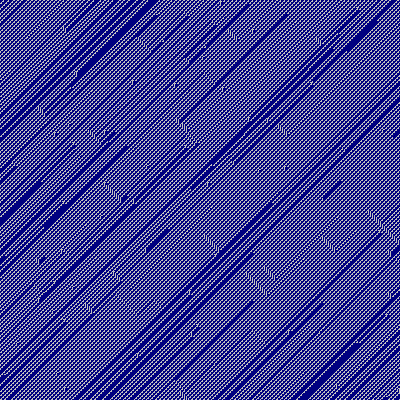

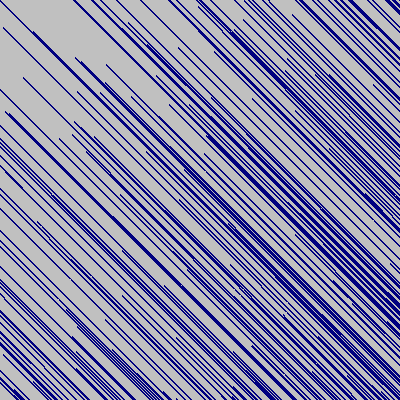

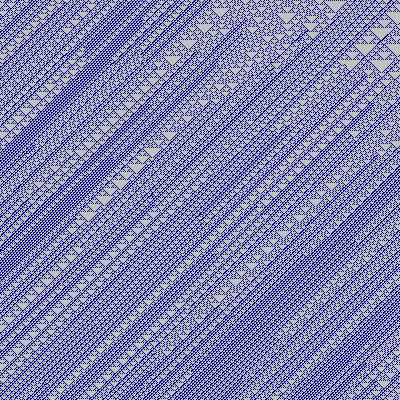

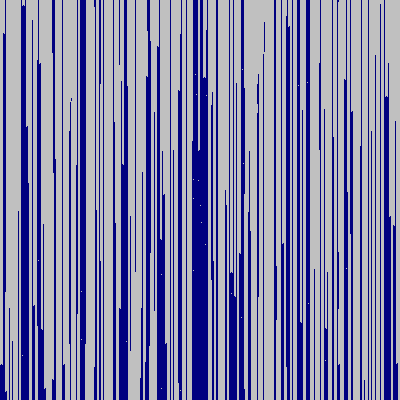

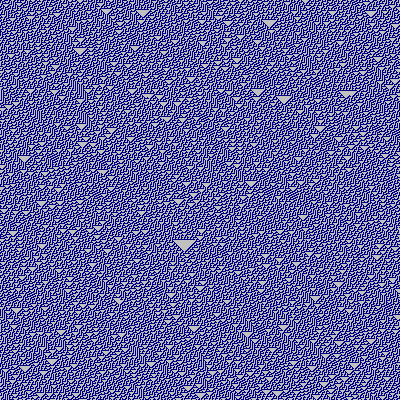

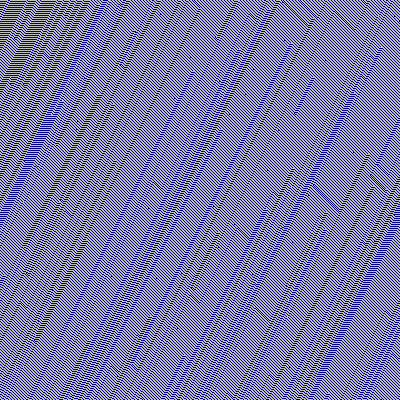

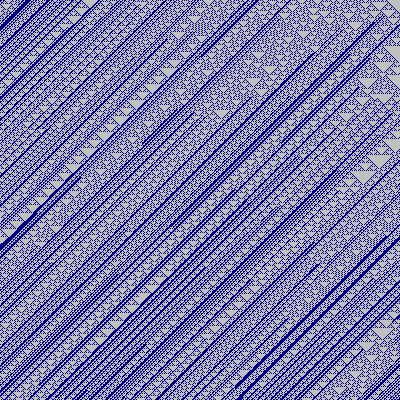

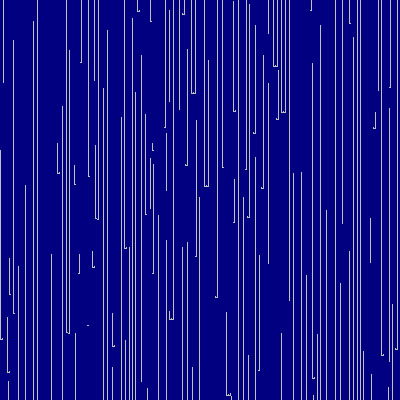

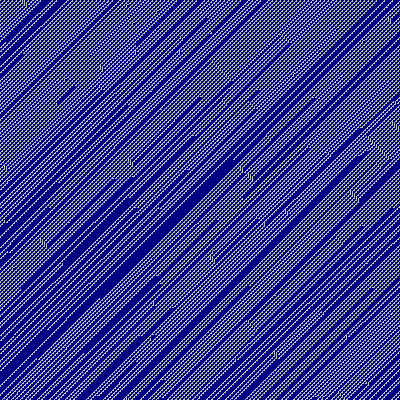

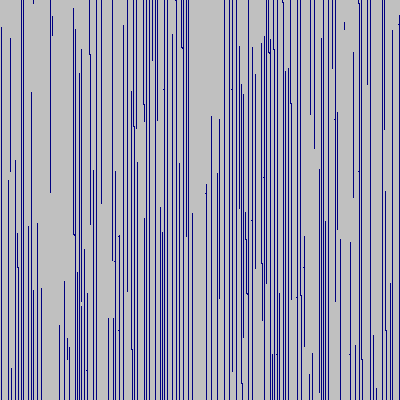

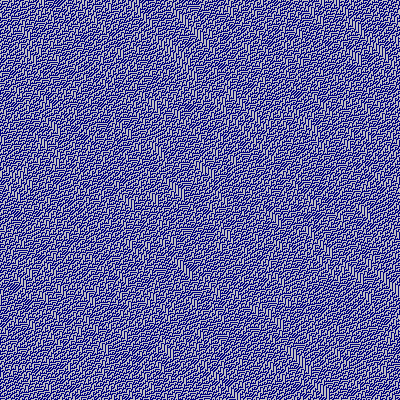

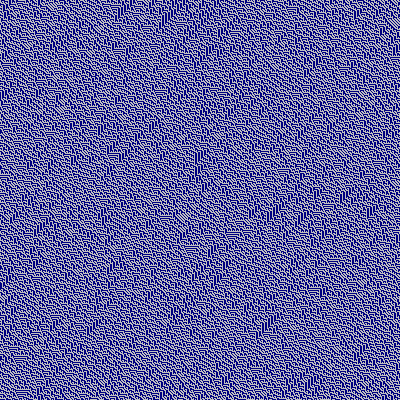

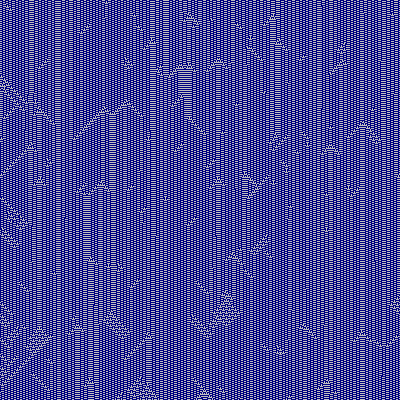

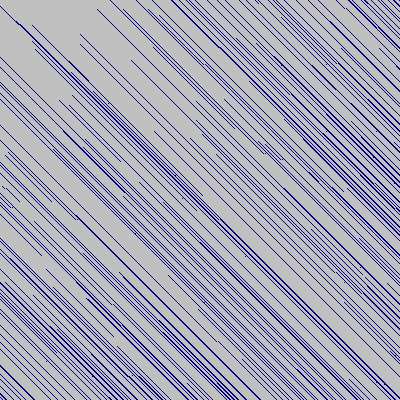

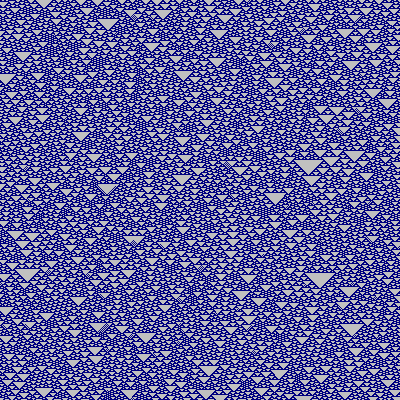

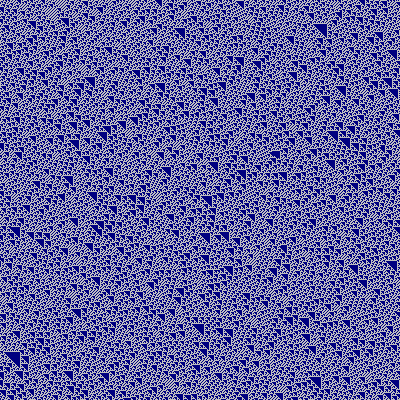

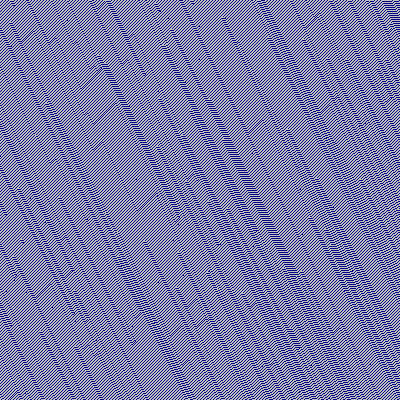

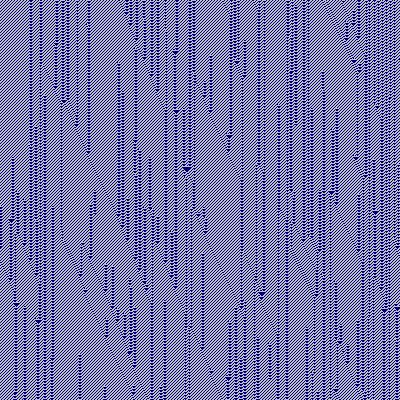

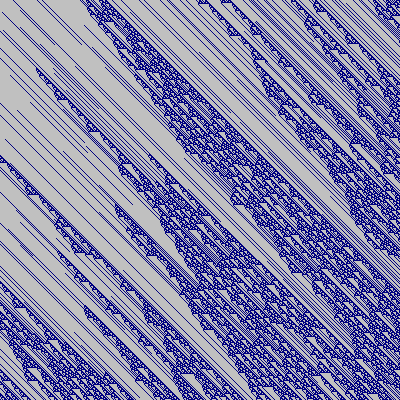

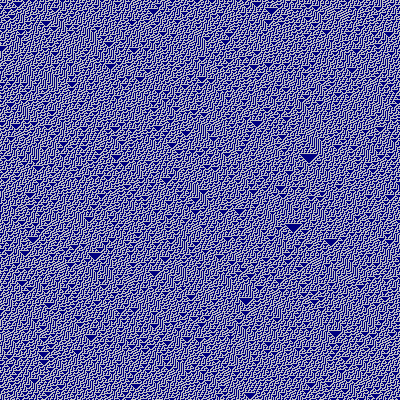

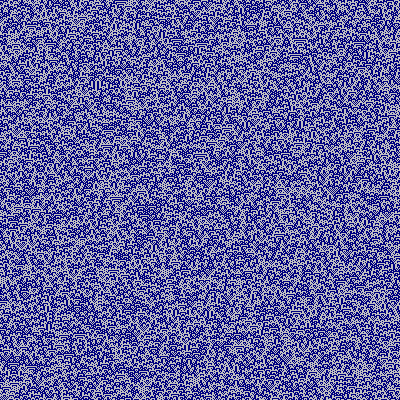

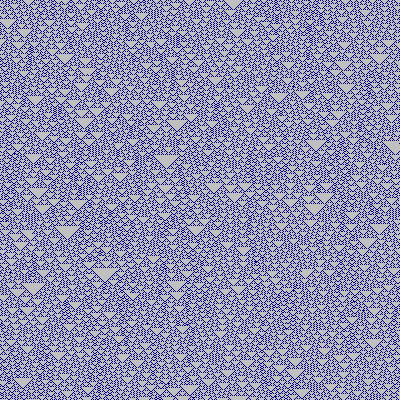

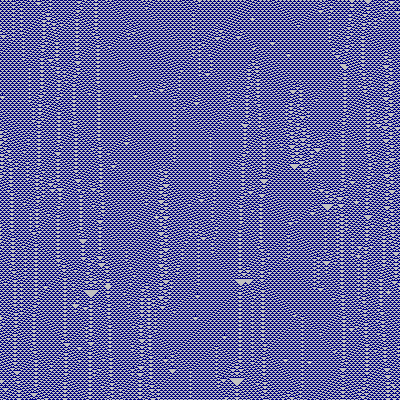

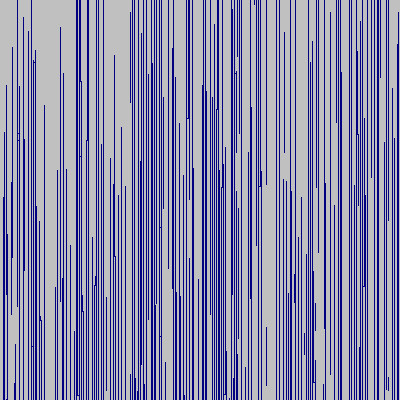

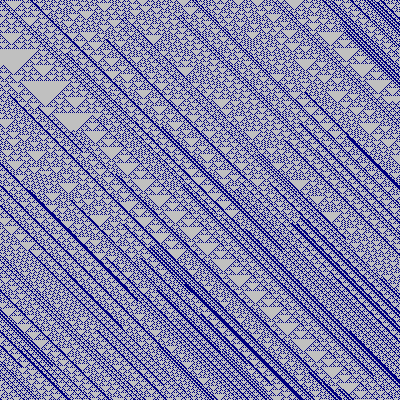

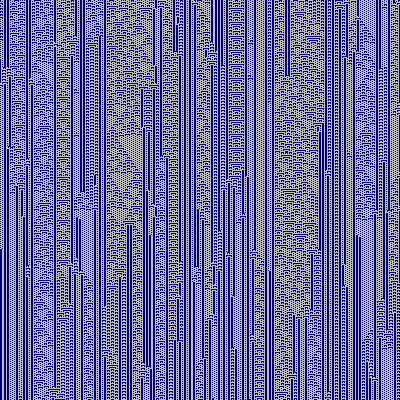

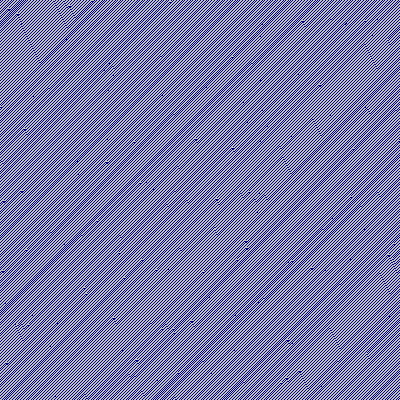

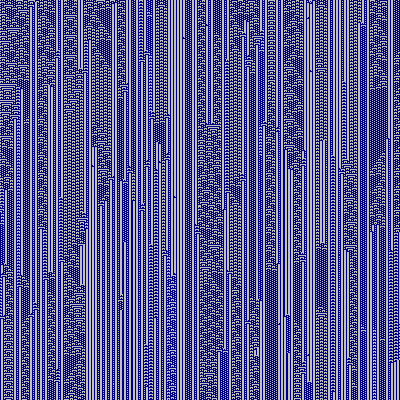

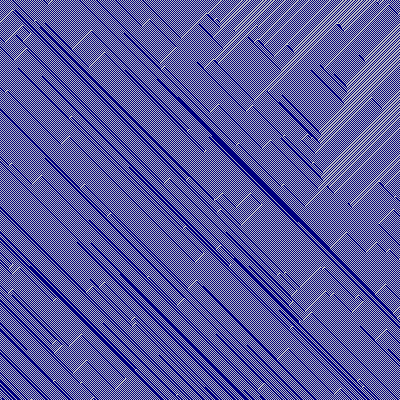

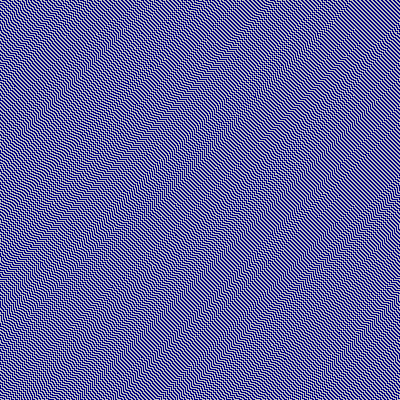

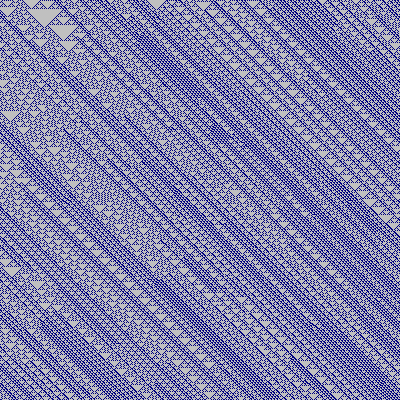

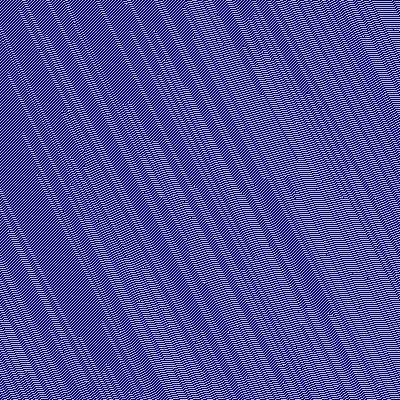

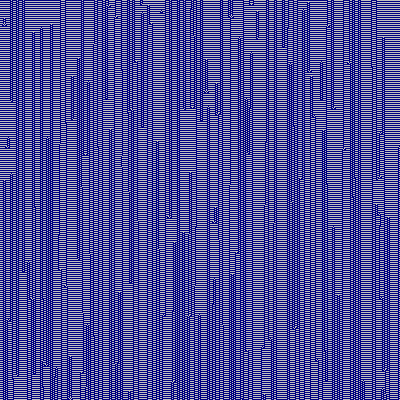

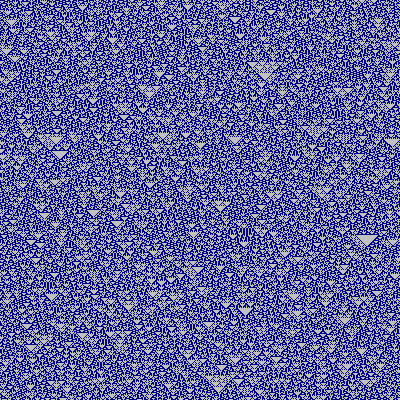

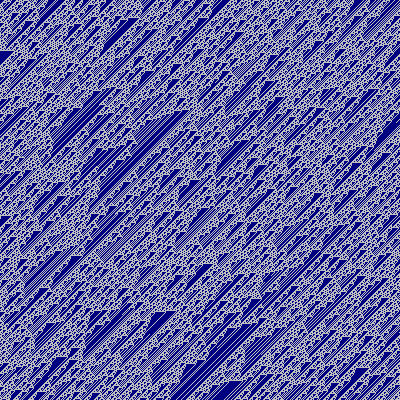

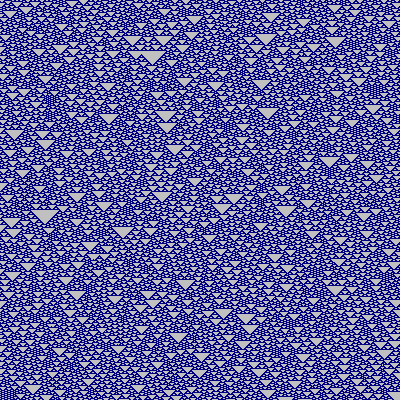

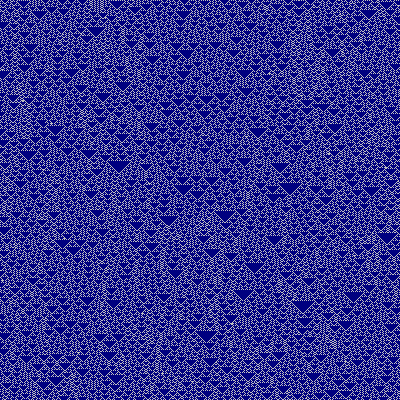

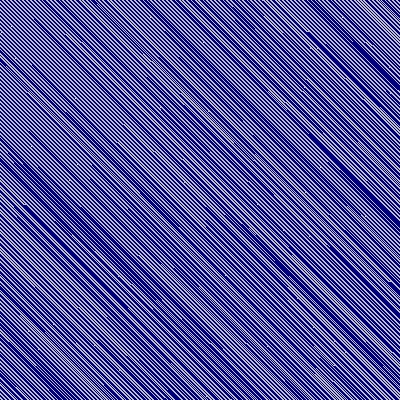

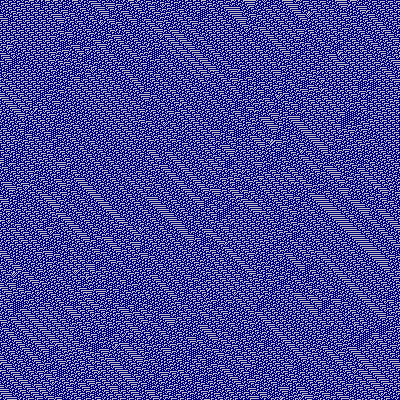

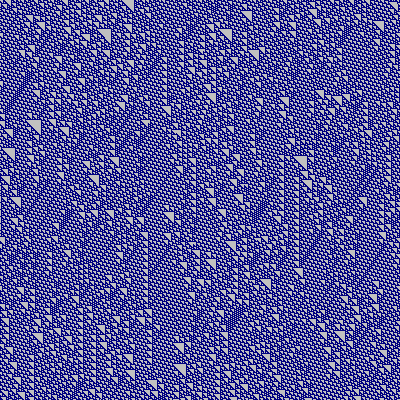

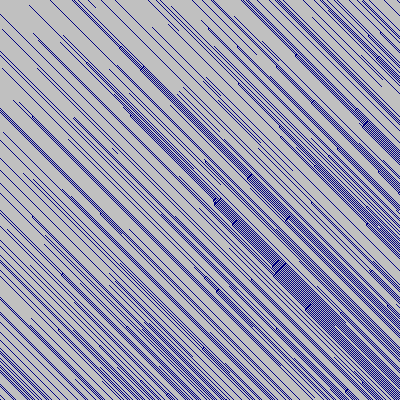

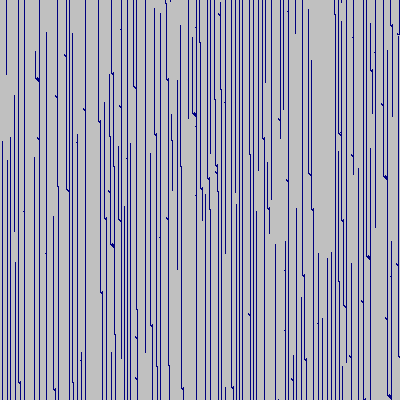

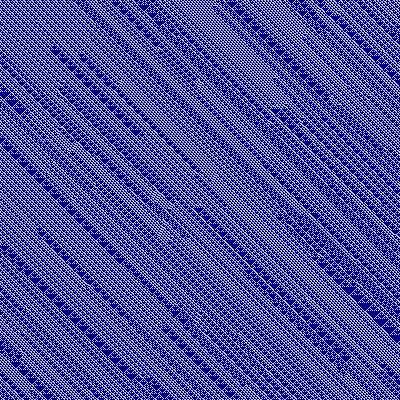

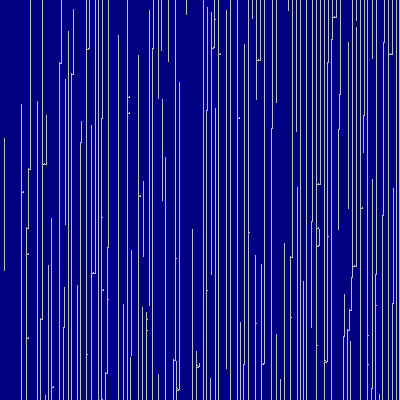

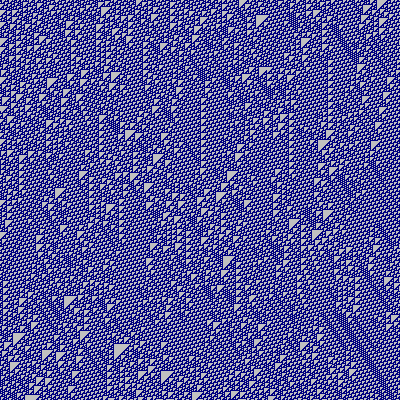

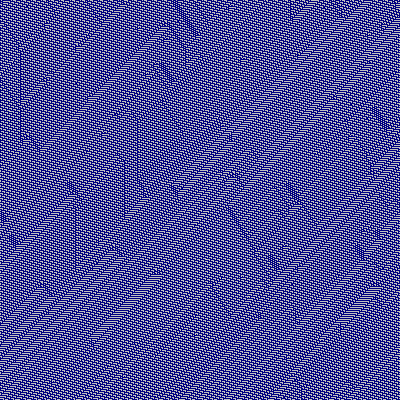

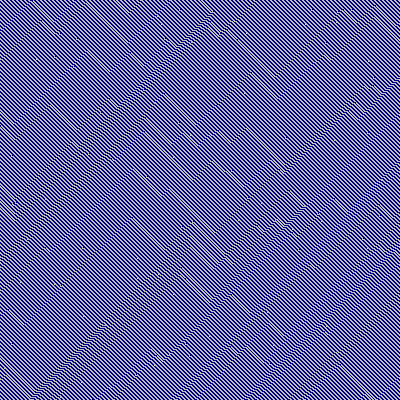

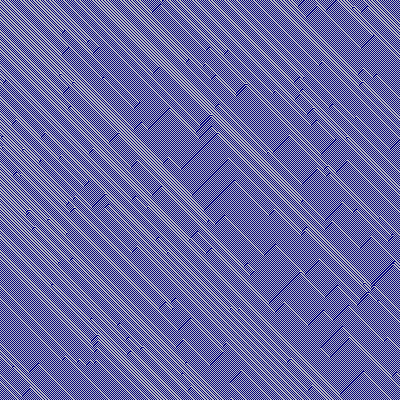

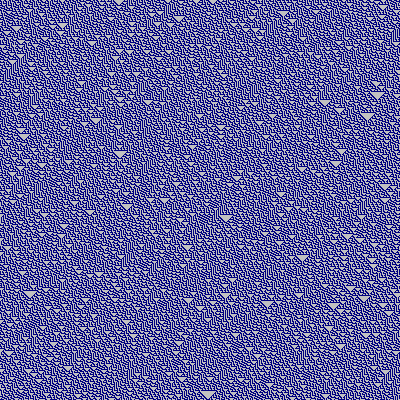

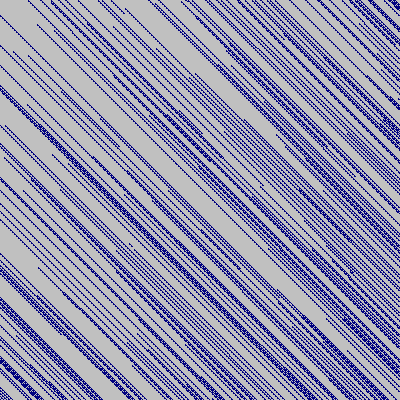

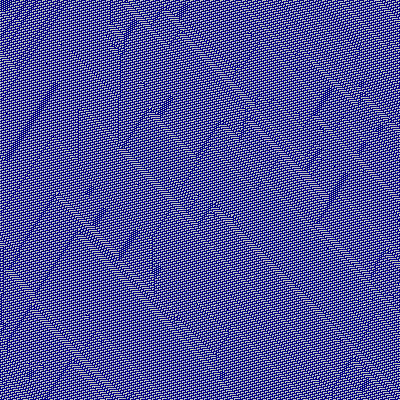

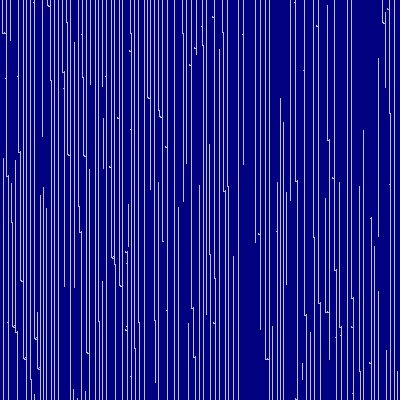

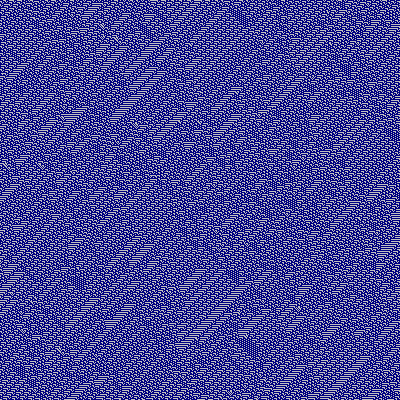

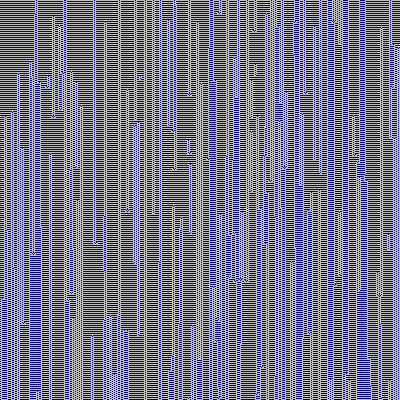

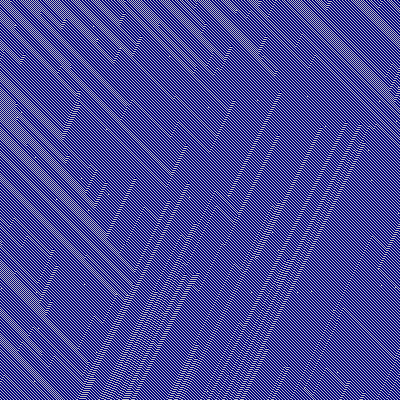

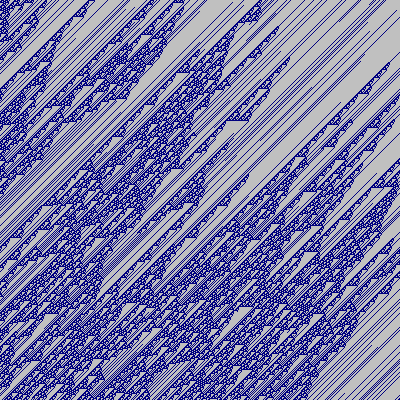

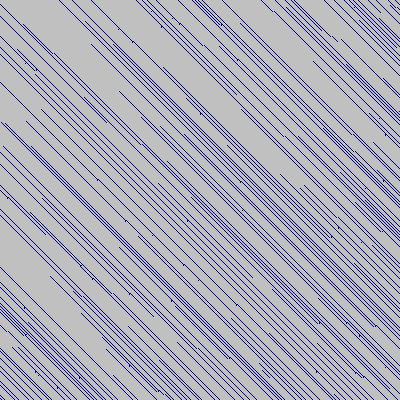

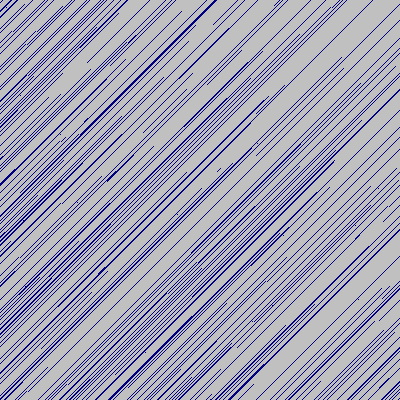

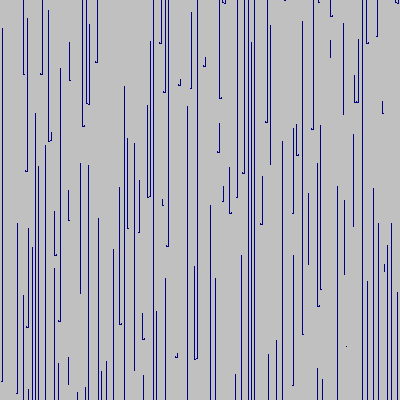

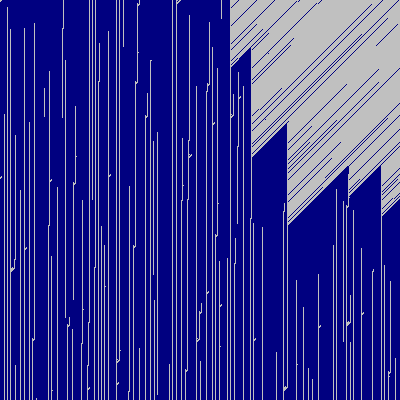

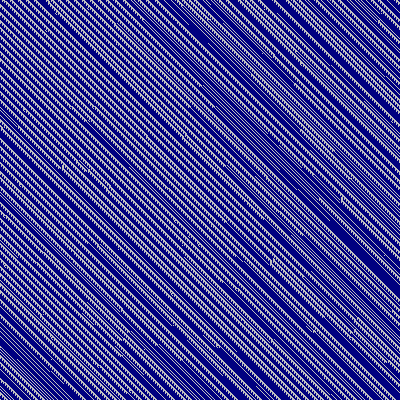

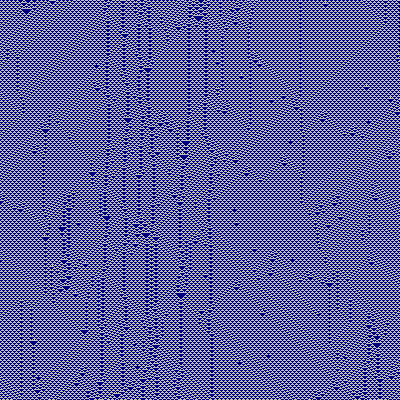

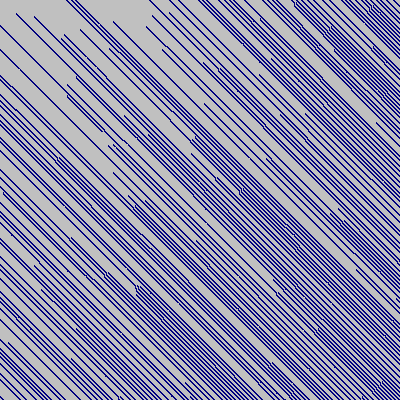

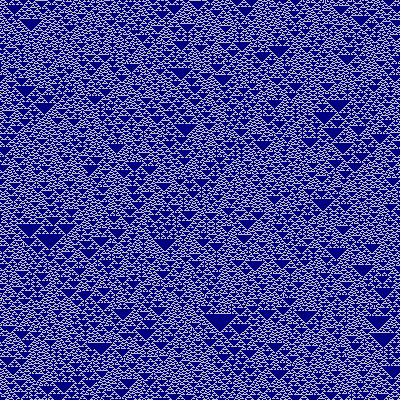

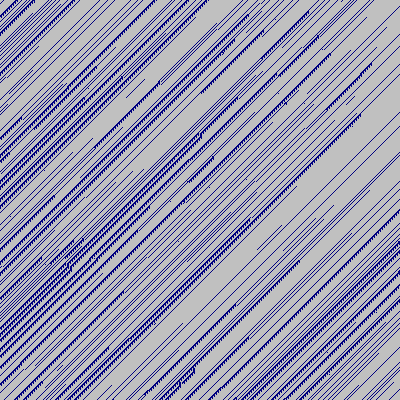

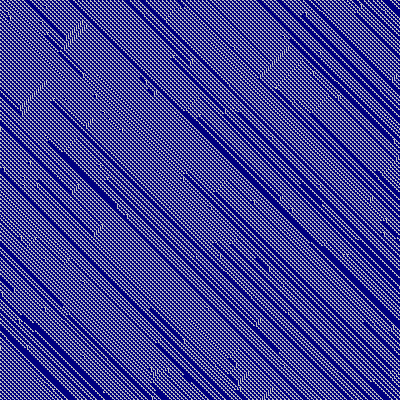

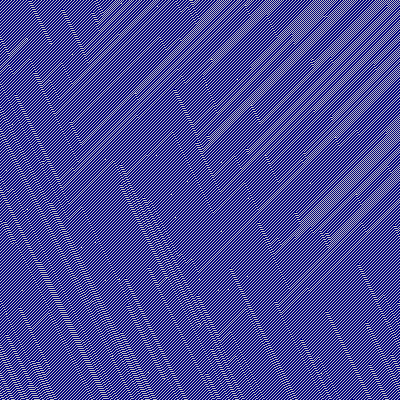

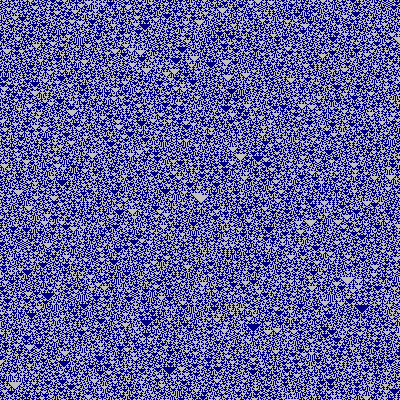

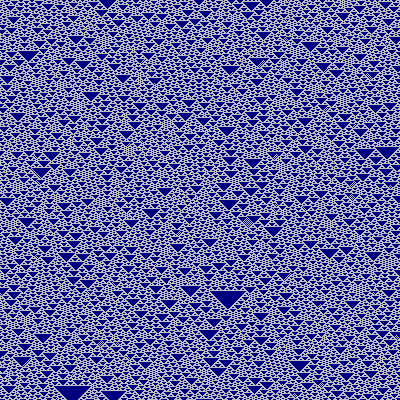

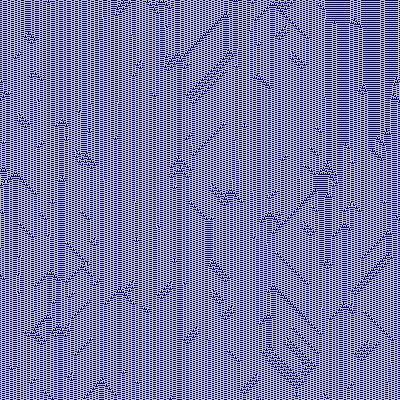

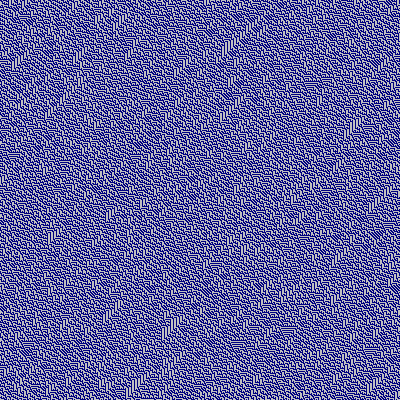

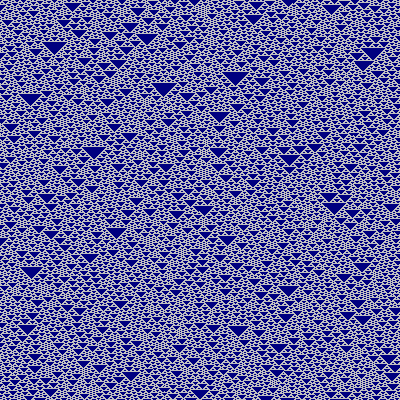

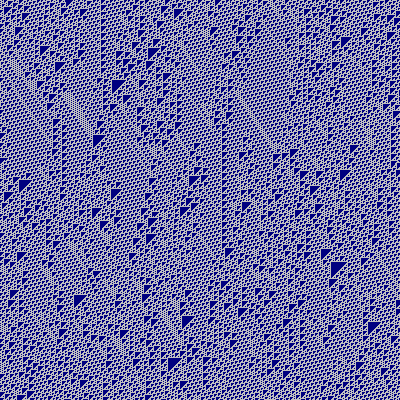

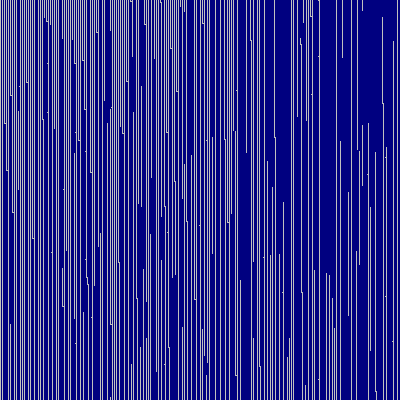

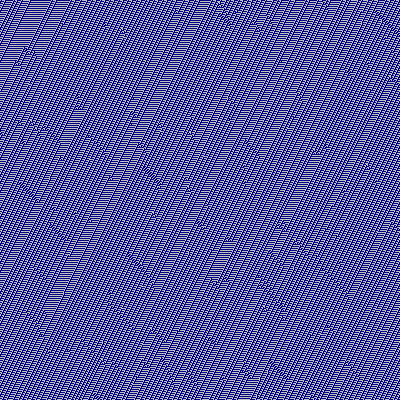

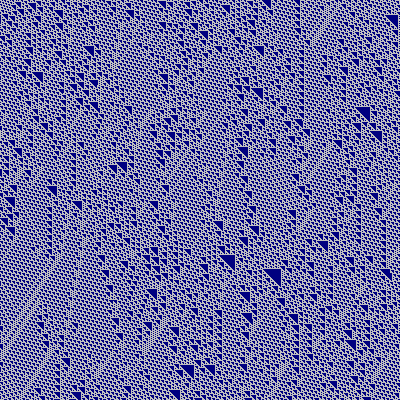

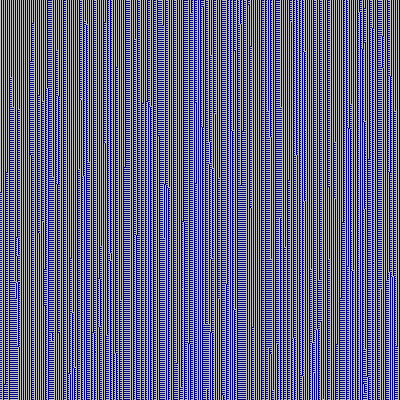

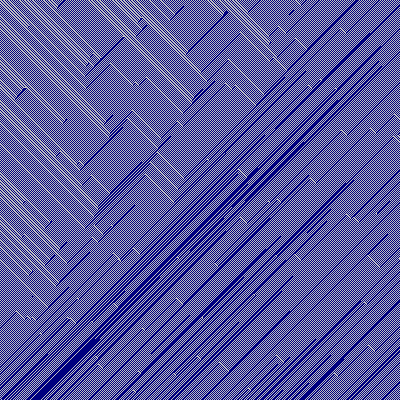

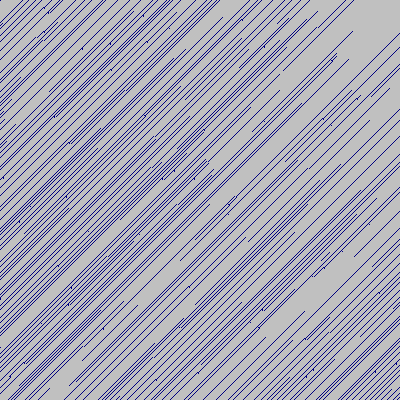

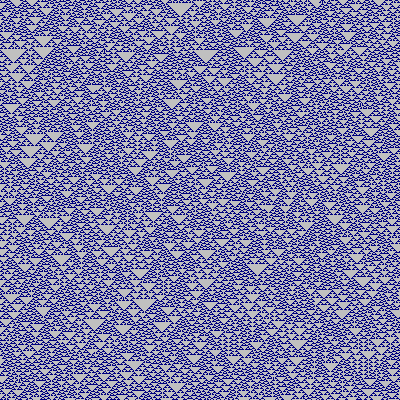

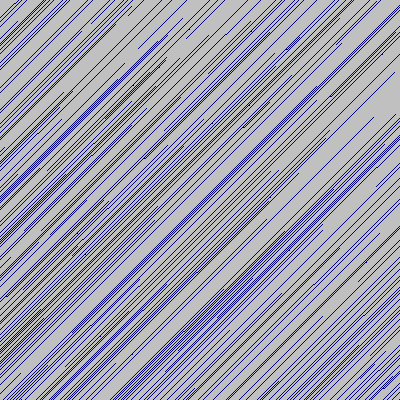

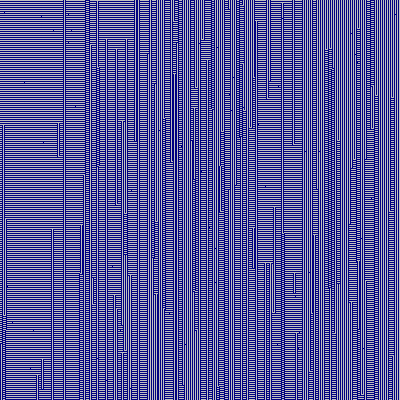

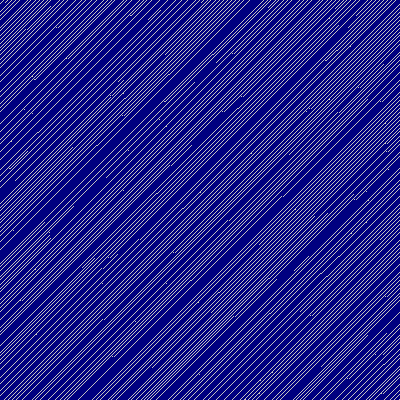

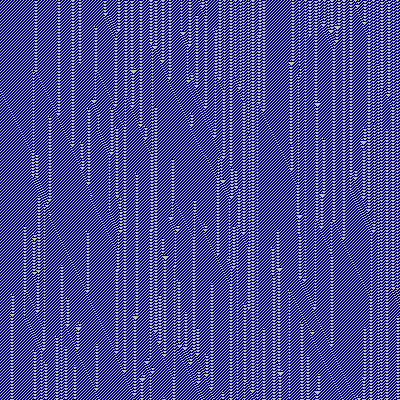

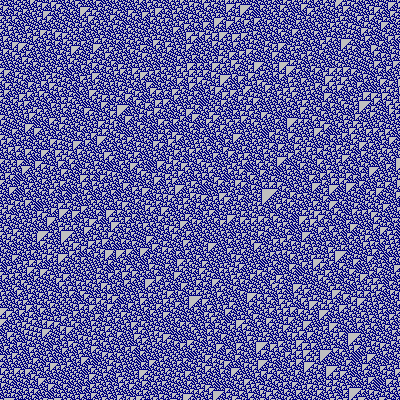

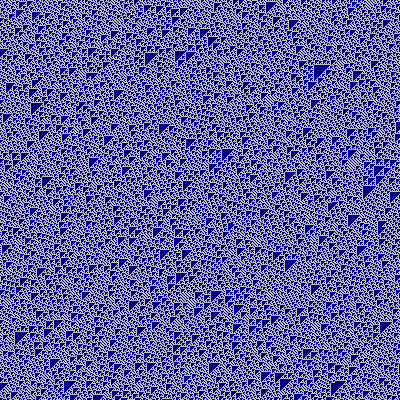

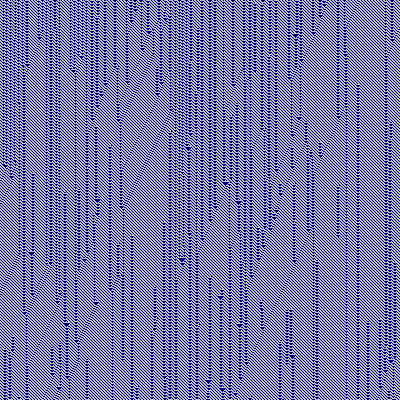

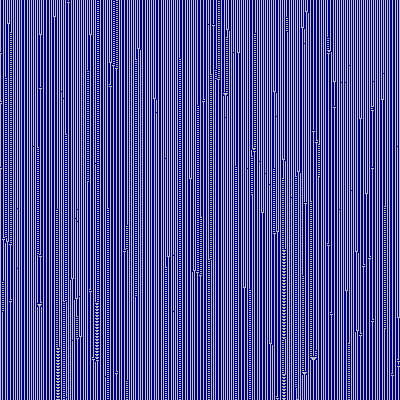

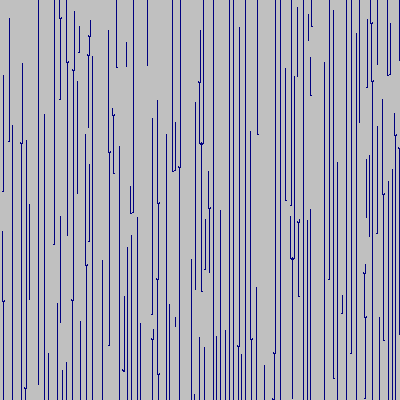

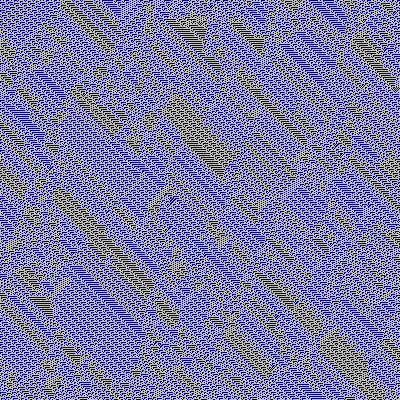

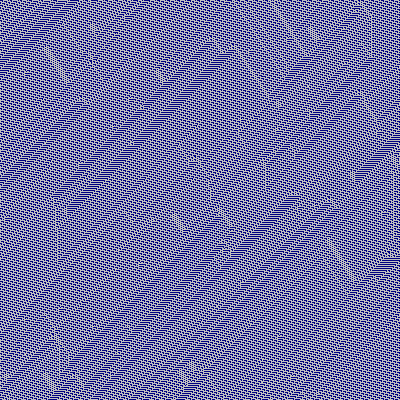

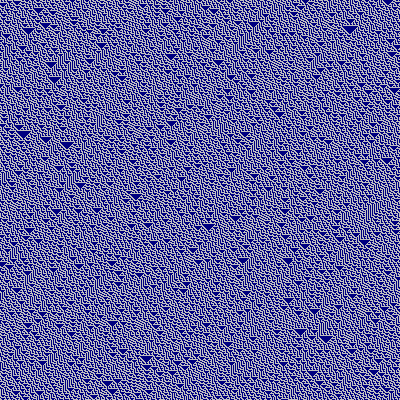

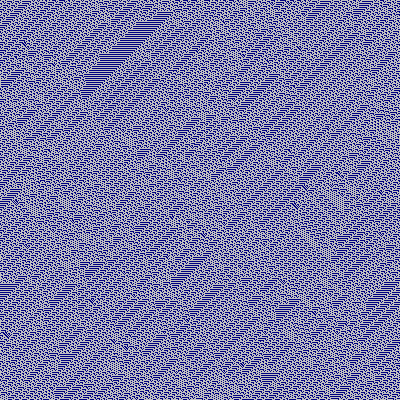

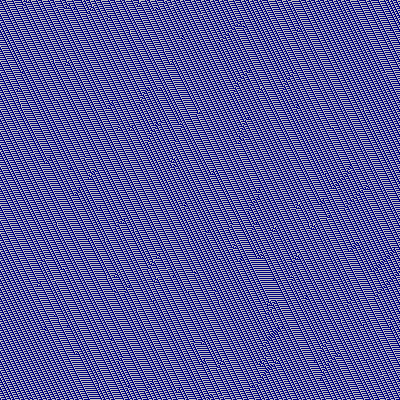

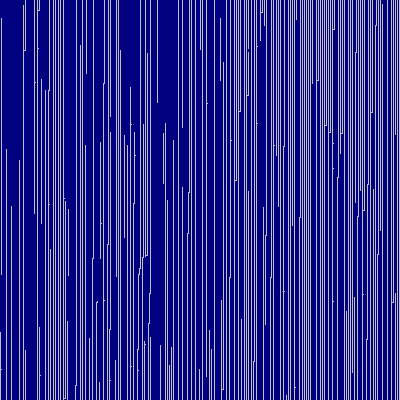

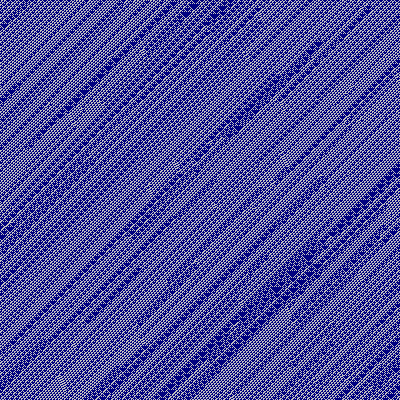

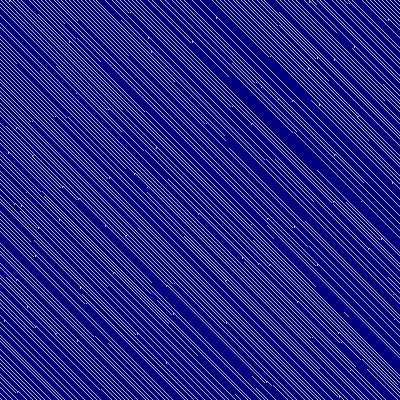

There are 256 rules in total, they all have small errors1. Some of the rules are shown here, others are insignificant.





























































































































































































































































































































































































































































Camera position

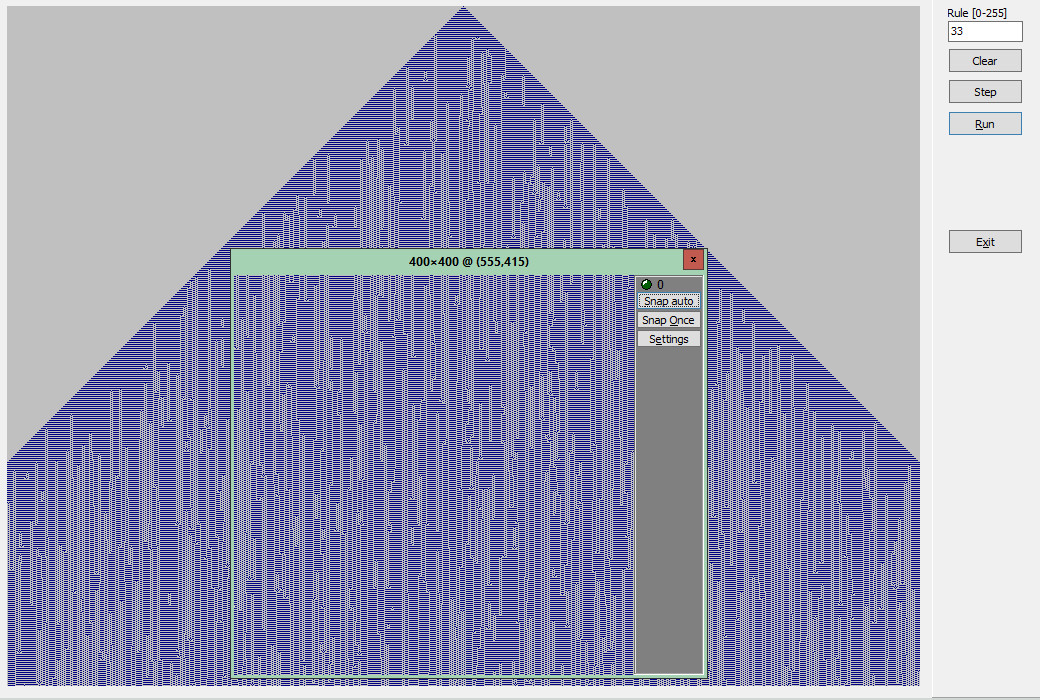

camera position

Code snapshots

  // Cellular automatons

  TBitArray = class
  private
    FData     : array of Byte;
    FBitCount : Integer;
  private
    function    GetBit( anIndex: Integer): Integer;
    procedure   SetBit( anIndex: Integer; aValue: Integer);
  public
    procedure   Clear;
  public
    property    Bit[ anIndex: Integer] : Integer read GetBit    write SetBit;
    property    BitCount               : Integer read FBitCount;
  end;

  PBitArray = ^ TBitArray;

  // Elementary Cellular Automaton, catalogued by FRule

  TElementaryCA = class
  private
    FBits1         : TBitArray;
    FBits2         : TBitArray;
    FBitsO         : PBitArray;
    FBitsN         : PBitArray;
    FRule          : Byte;
    FHasRandomSeed : Integer;
    FFaultRate     : TSignal;
  private
    function    GetBit( anIndex: Integer) : Integer;
    function    GetBitCount               : Integer;
    procedure   SwapON;
  public
    constructor Create;
    destructor  Destroy;                               override;
    procedure   Clear;
    procedure   Execute;
    procedure   SetRandomSeed( aBitCount: Integer);
  public
    property    Bit[ anIndex: Integer]: Integer read GetBit;
    property    BitCount              : Integer read GetBitCount;
    property    Rule                  : Byte    read FRule          write FRule;
    property    FaultRate             : TSignal read FFaultRate     write FFaultRate;
  end;


  // /////////////////////////////////////////////////////////////////////////////////////////
  // /////////////////////////////////////////////////////////////////////////////////////////


  function  MathIntMod( X, Y: Integer): Integer; inline;
  begin
    Result := ( X mod Y + Y) mod Y;
  end;


  function  MathIntDiv( X, Y: Integer): Integer; inline;
  begin
    Result := Floor( X / Y);
  end;


{ ========
  TBitArray = class
  private
    FData     : array of Byte;
    FBitCount : Integer;
  public
    property    Bit[ anIndex: Integer] : Integer read GetBit    write SetBit;
    property    BitCount               : Integer read FBitCount;
  private
}

    function    TBitArray.GetBit( anIndex: Integer): Integer;
    var
      i : Integer;
      b : Integer;
    begin
      i := MathIntDiv( anIndex, 8);

      if ( i >= 0) and ( anIndex < FBitCount)
      then begin
        b := MathIntMod( anIndex, 8);

        if ( FData[ i] and ( 1 shl b)) <> 0
        then Result := 1
        else Result := 0;
      end
      else Result := 0;
    end;


    procedure   TBitArray.SetBit( anIndex: Integer; aValue: Integer);
    var
      i : Integer;
      b : Integer;
    begin
      i := MathIntDiv( anIndex, 8);

      if i >= 0
      then begin
        b := MathIntMod( anIndex, 8);

        if i >= Length( FData)
        then SetLength( FData, i + 1);

        if anIndex >= FBitCount
        then FBitCount := anIndex + 1;

        if aValue <> 0
        then FData[ i] := FData[ i] or        ( 1 shl b)
        else FData[ i] := FData[ i] and ( not ( 1 shl b));
      end;
    end;


//  public

    procedure   TBitArray.Clear;
    begin
      FBitCount := 0;
      SetLength( FData, 0);;
    end;


{ ========
  TElementaryCA = class
  private
    FBits1         : TBitArray;
    FBits2         : TBitArray;
    FBitsO         : PBitArray;
    FBitsN         : PBitArray;
    FRule          : Byte;
    FHasRandomSeed : Integer;
    FFaultRate     : TSignal;
  public
    property    Bit[ anIndex: Integer]: Integer read GetBit;
    property    BitCount              : Integer read GetBitCount;
    property    Rule                  : Byte    read FRule          write FRule;
    property    FaultRate             : TSignal read FFaultRate     write FFaultRate;
  private
}

    function    TElementaryCA.GetBit( anIndex: Integer): Integer;
    begin
      if Assigned( FBitsO)
      then Result := FBitsO^.Bit[ anIndex]
      else Result := 0;
    end;


    function    TElementaryCA.GetBitCount: Integer;
    begin
      if Assigned( FBitsO)
      then Result := FBitsO^.BitCount
      else Result := 0;
    end;


    procedure   TElementaryCA.SwapON;
    var
      aTmp: PBitArray;
    begin
      aTmp   := FBitsO;
      FBitsO := FBitsN;
      FBitsN := aTmp;
    end;


//  public

    constructor TElementaryCA.Create;
    var
      i : Integer;
    begin
      inherited Create;
      FRule  := 0;
      FBits1 := TBitArray.Create;
      FBits2 := TBitArray.Create;
      FBitsO := @ FBits1;
      FBitsN := @ FBits2;

      if FHasRandomSeed > 0
      then begin
        for i := 0 to FHasRandomSeed - 1
        do FBits1.Bit[ i] := Random( 2);
      end
      else FBits1.Bit[ 0] := 1;
    end;


    destructor  TElementaryCA.Destroy; // override;
    begin
      FBitsO := nil;
      FBitsN := nil;
      FBits1.DisposeOf;
      FBits2.DisposeOf;
      inherited;
    end;


    procedure   TElementaryCA.Clear;
    var
      i : Integer;
    begin
      FBits1.Clear;
      FBits2.Clear;
      FBitsO := @ FBits1;
      FBitsN := @ FBits2;

      if FHasRandomSeed > 0
      then begin
        for i := 0 to FHasRandomSeed - 1
        do FBits1.Bit[ i] := Random( 2);
      end
      else FBits1.Bit[ 0] := 1;
    end;


    procedure   TElementaryCA.Execute;
    var
      P : Byte;
      N : Byte;
      i : Integer;
      F : Integer;
    begin
      if Assigned( FBitsN)
      then begin
        for i := 0 to BitCount + 1
        do begin
          N := Bit[ i] + ( Bit[ i - 1] shl 1) + ( Bit[ i - 2] shl 2);
          P := 1 shl N;

          if Random < FFaultRate
          then F := 1
          else F := 0;

          if ( FRule and P) <> 0
          then FBitsN^.Bit[ i] := 1 xor F
          else FBitsN^.Bit[ i] := 0 xor F;
        end;

        SwapON;
      end;
    end;


    procedure   TElementaryCA.SetRandomSeed( aBitCount: Integer);
    begin
      FHasRandomSeed := aBitCount;
      Clear;
    end;


  // /////////////////////////////////////////////////////////////////////////////////////////
  // /////////////////////////////////////////////////////////////////////////////////////////


// User area

const

  BACK_COLOR = clSilver;
  FORE_COLOR = clNavy;


//  private

    procedure   TFormAutomaton.SetRule( aValue: Integer);
    begin
      if ( aValue >= 0) and ( aValue <= 255) and ( aValue <> FRule)
      then begin
        FRule         := aValue;
        EditRule.Text := IntToStr( FRule);
      end;
    end;


//  private

    procedure   TFormAutomaton.Clear;
    begin
      FLine := 0;
   // FAutomaton.SetRandomSeed( FBitmap.Width);
      FAutomaton.Clear;
      FAutomaton.Rule      := Rule;
      FAutomaton.FaultRate := 0.001;                        // ← [Note 1] error rate of 1 ‰
      FBitmap.Canvas.Pen  .Color := BACK_COLOR;
      FBitmap.Canvas.Brush.Color := BACK_COLOR;
      FBitmap.Canvas.Rectangle( 0, 0, FBitmap.Width, FBitmap.Height);
      PaintLine;
    end;


    procedure   TFormAutomaton.Run;
    var
      i : Integer;
    begin
      Clear;

      for i := 0 to FBitmap.Height - 1
      do Step;
    end;


    procedure   TFormAutomaton.Step;
    begin
      Inc( FLine);
      FAutomaton.Execute;
      PaintLine;
    end;


    procedure   TFormAutomaton.PaintLine;
    const
      Colors : array[ 0 .. 1] of TColor = ( BACK_COLOR, FORE_COLOR);
    var
      Mid : Integer;
      i   : Integer;
    begin
      Mid := FBitmap.Width div 2;

      for i := 0 to FAutomaton.BitCount - 1
      do FBitmap.Canvas.Pixels[ i - FLine + Mid, FLine] := Colors[ FAutomaton.Bit[ i]];

      PaintBox.Invalidate;
    end;


    procedure   TFormAutomaton.DoPaint;
    begin
      PaintBox.Canvas.Draw( 0, 0, FBitmap);
    end;


~ fin ~
